Amazon EBS, Amazon S3, and Local Instance Storage

AWS’ cloud block storage ( Amazon EBS ) is a great product, providing a multitude of different product types depending on your performance (random IOPS, access latency) requirements. However, the provided durability is limited. Depending on the EBS volume type , AWS provides a durability indicator between 99.8% and 99.999%. The bigger issue though, in case of a disaster in your availability zone (AZ), storage will become unavailable in its entirety and, depending on the type of the disaster, data may actually be lost (partially or in full).

The durability is even worse with local instance storage. Local instance storage are NVMe disks which are physically located on the virtual machine host that runs your workload. That said, all data stored on local instance storage is immediately lost once the instance is turned off, or a failure occurs with the physical host.

Amazon S3 storage, on the other hand, is considered to be extremely durable, offering 99.999999999% durability. In addition, it is replicated across availability zones. Therefore, the probability of data loss by any kind of disaster is close to zero. To our knowledge, and as of time of writing, it has never actually happened. In terms of durability, Amazon S3 is king.We trade, however, durability for latency.

Data Protection for Amazon EBS

As shown, all persistent (meaning, non ephemeral) data stored in Amazon EBS requires additional means of protection. That said, the most common way to protect your data is taking a snapshot of your EBS volume and backing it up to Amazon S3.

Those S3 backups have a number of important drawbacks though: A snapshot-based backup always implicitly means that you’ll have data loss of some kind. Data which has been written between the last backup and the time of the failure is irrecoverably lost. No restore procedure will be able to recover it. For low velocity data (data which is rarely changed) that may be a minor issue. Examples of this kind of data may be media files or archived documents. However, the data loss can be catastrophic for other types of data such as transactional systems. Multiple backups between different systems aren’t consistent between each other. The backup of one database may not fit the backup of another database or a file repository. That said, after restoration the systems may have inconsistent data states and will not integrate correctly. Bringing a collection of systems with backups taken at different times back into a working state can be a massive manual effort. Sometimes it is even impossible. Backup management is a significant effort. To free up disk space, it is necessary to remove snapshots from EBS after moving them to S3. Furthermore, backups have to be configured with retention policies. The successful operations of taking backups must be monitored and backups have to be tested regularly to make sure it is possible to restore them successfully.

Last but not least, human error in backup management may lead to missing or corrupted backups.

Data Protection for Amazon EBS with Simplyblock

Simplyblock provides a smart solution to the consistent recovery of hot data after a major incident or even a zone-level disaster.

First and foremost, simplyblock logical volumes stores data synchronously into the hot tier storage backend. In addition, data is also written into an asynchronous replicated write-ahead log (WAL). Writing this log is optimized for high throughput to secondary (low IOPS) storage such as S3 or HDD pools (e.g. the Amazon EBS st2 service). Last but not least, the WAL is efficiently compacted at regular intervals to limit storage growth and optimize recovery times.

Simplyblock’s logical volumes inherently support snapshots. Due to the copy-on-write nature of simplyblock, snapshots are taken immediately and, together with the WAL, asynchronously replicated to S3.

Data recovery, on the other hand, restores all live volumes and snapshots in a fully consistent manner. The asynchronicity of the replication limits data loss to a few hundred milliseconds.

Disaster Recovery with Near-Zero RPO

The solution stores all “hot” data either in distributed instance storage or within gp3 pools, providing the necessary online performance of storage. At the same time, all data is also asynchronously replicated into S3.

In case of a loss of the entire infrastructure in an availability zone (including the gp3 volumes and local instance storage) it is possible to consistently bootstrap the entire environment in a new AZ.

If a customer uses simplyblock to store the databases, but also bootstrap and deployment information (like ArgoCD configuration, terraform data, or similar), a recover operation can consistently restore the entirety of the infrastructure from ground up. Using this strategy, infrastructures supported by simplyblock can be consistently and fully automatically recovered with near-zero RPO and a low RTO becomes possible.

For this purpose, the “primary” simplyblock storage pod, which contains all data required for bootstrapping, has to be restarted in a new zone and connected to the control plane. Afterwards, all storage is consistently accessible.

First, infrastructure templates and configurations for the environment are retrieved, after which the deployment scripts are run and the infrastructure is redeployed. In this process, databases, documents, and other file stores can already be connected to their corresponding volumes, which contain all of the data in a crash-consistent manner.

At a later stage, “secondary” storage plane pods can be restarted within the new availability zone and data will be recovered.

The recovery time depends largely on the amount of data and the instance network bandwidth. The read time from S3 is highly optimized using large, parallel reads, wherever possible to pre-fetch hot data as quickly as possible.

Conclusion

All that said, simplyblock, the intelligent storage orchestrator, provides a powerful and feature-rich solution to provide a crash-consistent, yet performant storage solution.

Built upon well-known storage solutions, such as local instance storage, Amazon EBS, and Amazon S3, simplyblock combines the ultra low latency access of NVMe volumes (pooled or unpooled) with the extreme durability of Amazon S3. Simplyblock’s write-ahead log and disaster recovery support enables the lowest RPO and minimal downtime, even in case of the loss of a full availability zone.

Get started with simplyblock today and learn all about the other amazing features simplyblock brings right to you.

The post Disaster Recovery with Simplyblock in AWS appeared first on simplyblock.

Amazon EBS: the Limitations

When building out a new system, quick iterations are generally key. That includes fast turnovers to test ideas, or validate approaches. Using out of the box services, like Amazon EBS helps with these requirements. Cloud providers like AWS offer these services to get customers started quickly.

That said, cloud block storage volumes, such as Amazon EBS (gp3, io2, io2 Block Express), provide fast storage with high IOPS, and low latency for your compute instances (Amazon EC2) or Kubernetes environments (Amazon EKS or self-hosted) in the same availability zones.

While quick to get started, eventually you may run into the following shortcomings, which will make scaling either complicated or expensive.

Limited Free IOPS: The number of free IOPS is limited on a per volume basis, meaning that if you need high IOPS numbers, you have to pay extra. Sometimes you even have to change the volume type (gp3 only supports up to 16k IOPS, whereas io2 Block Express supports up to 256k IOPS).

Limited Durability: Depending on the selected volume type you’ll have to deal with limited data durability and availability (e.g. gp3 offers only 99.9% availability). There is no way to buy your way out of it, except using two volumes with some RAID1 like configuration.

No Thin Provisioning: Storage cost is paid per provisioned capacity per time unit and not by actual usage (which is around 50% less). When a volume is created, the given capacity is used for calculating the price, meaning if you create a 1TB volume but only use 100GB, you’ll still pay for the 1TB.

Limited Capacity Scalability: While volumes can be grown in size, you can only increase the capacity once every 6h (at least on Amazon EBS). Therefore, you need to estimate upfront how large the volume will grow in that time frame. If you miscalculated, you’ll run out of memory.

No Replication Across Availability Zones: Volumes cannot be replicated across availability zones, limiting the high availability if there are issues with one of the availability zones. This can be mitigated using additional tools, but they invoke additional cost.

Missing Multi-Attach: Attaching a volume to multiple compute instances or containers offers shared access to a dataset. Depending on volume-type, there is no option to multi-attach a volume to multiple instances.

Limited Latency: Depending on volume type, the access latency of a volume is located in the single or double-digit milliseconds range. Latency may also fluctuate. With low and predictable latency requirements, you may be limited here.

Simplyblock, Elastic Block Storage for the Cloud-Age

Simplyblock is built from the ground up to break-free of the typical cloud limitations and provide sub-millisecond predictable latency, virtually unlimited IOPS, while empowering you with scalability and a minimum five9s (99.999%) availability.

To overcome your typical cloud block storage service limitations, simplyblock implements a transparent and dynamic pooling of cloud-based block storage volumes, combining the individual drives into one large storage pool.

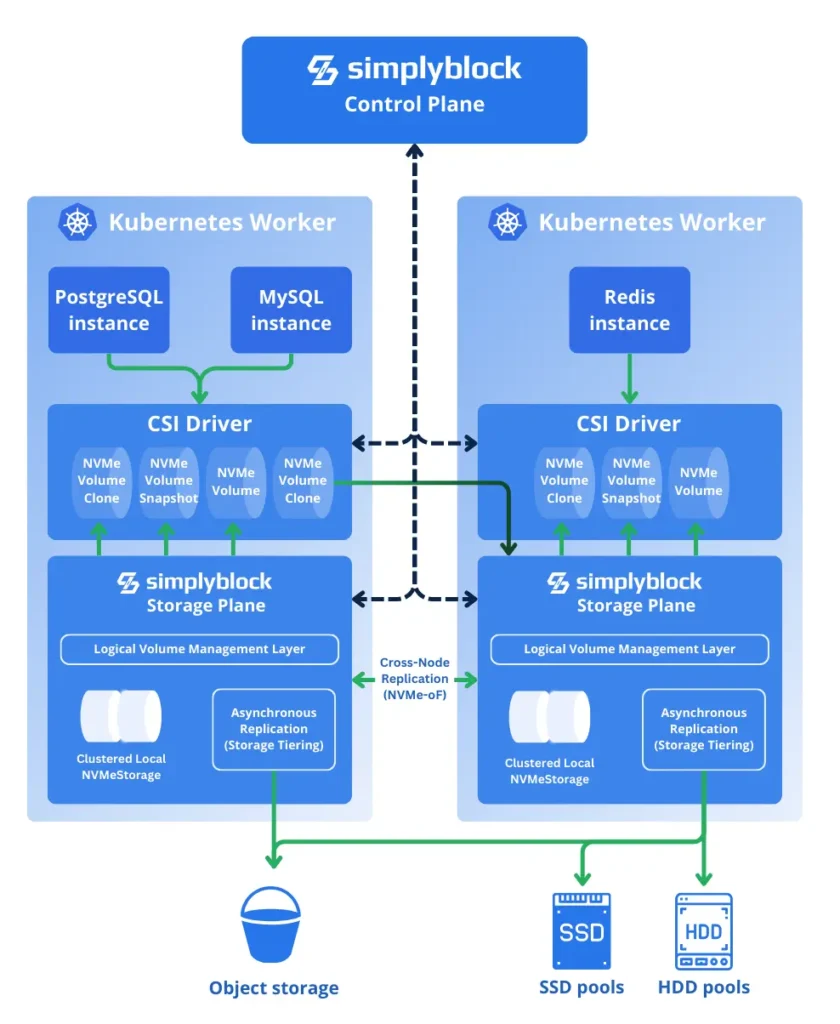

In its simplest form, block storage is pooled in a single, but separated storage node (typically a virtual machine). From this pooled storage, which can be considered a single, large virtual disk (or stripe), we carve out logical volumes. These logical volumes can differ in capacity and their particular performance characteristics (IOPS, throughput). All logical volumes are thin-provisioned, thus making more efficient use of raw disk space available to you.

On the client-side, meaning Linux and Windows, no additional drivers are required. Simplyblock’s logical volumes are exported as NVMe devices and use the NVMe over Fabrics industry standard for fast SSD storage, hence the NVMe initiator protocol for NVMe over TCP is already part of the operating system kernels on Linux and the latest versions of Windows Server. Simplyblock logical volumes are designed for ease of use and the out of the box experience, simply by partitioning them and formatting them with any operating-system specific file system.

Additional data services include instant snapshotting of volumes (for fast backup) and instant cloning (for speed and storage efficiency) as well as storage replication across availability zones (for disaster recovery purposes). All of this is powered by the copy-on-write nature of the simplyblock storage engine.

Last but not least, logical volumes can also be multi-attached to multiple compute instances.

More importantly though, simplyblock has its own Kubernetes CSI driver for automated container storage lifecycle management under the Kubernetes ecosystem.

Scaling out the Simplyblock Storage Pool

If the processing power of a single storage node isn’t sufficient anymore, or high-availability is required, you will use a cluster. When operating as a cluster, multiple storage nodes are combined as a single virtual storage pool and compute instances are connected to all of them.

In this scenario, a transparent online fail-over mechanism takes care of switching the connection of logical volumes from one node to another in case of connection issues. This mechanism (NVMe multi-pathing with ANA) is already built into the operating system kernels of Linux and Windows Server, therefore, no additional software is required on the clients.

It is important to note that clusters can be expanded by either increasing the attached block storage pools (on the storage nodes) or by adding additional storage nodes to the cluster. This expansion can happen online, doesn’t require any downtime, and eventually results in an automatically re-balanced storage cluster (background operation).

Simplyblock and Microsecond Latency

When double-digit microsecond latency is required, simplyblock can utilize client-local NVMe disks as caches.

In this case simplyblock can boost read IOPS and decrease read access latency to below 100 microseconds. To achieve this you configure the local NVMe devices as a write-through (read) cache. Simplyblock client-local caches are deployed as containers. In a typical Kubernetes environment, this is done as part of CSI driver deployment via the helm chart. Caches are transparent to the compute instances and containers and look like any access to a local NVMe storage. They are, however, managed as part of the simplyblock cluster.

Simplyblock as Hyper-converged instead of Disaggregated

If you have sufficient spare capacity (CPU, RAM resources) on your compute instances and don’t want to deploy additional, separated storage nodes, a hyper-converged setup can be chosen as well. A hyper-converged setup is more cost-efficient as no additional virtual server is required.

On the other hand, resources are shared between services consuming storage and the simplyblock storage engine. While this is isn’t necessarily a problem, it requires some additional capacity planning on your end. Simplyblock generally recommends a disaggregated setup where storage and compute resources are strictly separated.

Simplyblock: Scalable Elastic Block Storage Made Easy

No matter what deployment strategy you choose, storage nodes are connected to simplyblock’s the hosted and managed control plane. The control plane is highly scalable and can serve thousands of storage clusters. That said, if you deploy multiple clusters, the management infrastructure is shared between all of them.

Likewise, all of the shown deployment options are realized using different deployment configurations of the same core components. Additionally, none of the configurations requires special software on the client side.

Anyhow, simplyblock enables you to build your own elastic block storage, overcoming the shortcomings of typical cloud provider offered services, such as Amazon EBS. Simplyblock provides advantages as overcome the (free) IOPS limit with a single volumes benefitting from 100k or more free IOPS (compared to e.g. 3,000 for aws gp3) reach read access latency lower than 100 microseconds multi-attach a volume to many instances replicate a volume across availability zones (synchronous and asynchronous replication) and bring down the cost of capacity / increase storage efficiency by multiple times via thin provisioning and copy-on-write clones scale the cluster according to your needs with zero downtime cluster extension

If you want to learn more about simplyblock see why simplyblock, or do you want to get started right away ?

The post Block Storage Volume Pooling for the Cloud-Age appeared first on simplyblock.

Stateful Workloads and Data Persistence

Originally designed to be stateless, containers were supposed to also be ephemeral and lightweight. They were designed to “boot” quickly and be small, maybe a few megabytes in size, sharing much of their host operating system.

This design quickly became a hassle, and people realized that you often have to persist data between container restarts. Some of this storage can be ephemeral (living until the pod ceases to exist) or persistent (which will stay alive indefinitely). This is specifically important for applications like databases or logs, as well as many other types of applications that need to hold serialized session information or similar states.

In general, the bigger the container-based landscape, the higher the chance of having stateful workloads in your deployments, especially with large Kubernetes deployments consisting of hundreds of nodes.

Using the CSI and its storage plugins, it is possible and recommended (at least by us) to separate the storage and compute infrastructure. This disaggregated architecture enables independent scalability and allows users to choose the best tool for the job.

To bind a persistent volume to a Kubernetes container, a so-called persistent volume is required that consists of the container’s storage requirement definition. That includes the StorageClass, basically what type of backing storage is requested (this is normally a 1:1 mapping to a specific CSI implementation, like simplyblock’s driver, or a combination of the CSI implementation and some characteristics, such as a performance policy), but also the requested size and lifecycle binding of the (persistent) volume claim and its persistent volume.

Why are Kubernetes Persistent Volumes Essential?

One could ask why not just directly bind to directories or other storage backends. The whole point of Kubernetes is to abstract away the underlying operating system, or better said, the whole environment outside of Kubernetes. This enables developers and DevOps folks to make specific assumptions about the environment, bringing development and production environments closer together. Especially for developers, this is a big win since debugging is easier than ever before.

To achieve this abstraction, applications, and containers should not make assumptions about the underlying storage (or any other resource). Hence, provisioning storage is part of the actual deployment process.

Managing persistent volume resources this way has quite a few benefits:

1. Decoupling: PVs decouple the storage provisioning from the pod or container lifecycle, allowing more flexibility and independence in managing storage resources.
2. Storage Persistence: PVs offer persistent storage, which survives pod terminations and rescheduling.
3. Dynamic Provisioning: PVs can be dynamically provisioned, enabling automatic on-demand creation and management according to the application requirements.
4. Portability: While not strictly true for all backing storage types, PVs enable the separation of concerns by providing access to local and remote storage options.
5. Resource Management: PVs, or better said, their storage class implementations, can provide better resource management by virtualizing the storage and sharing access to the same backing storage, hence reducing storage redundancy and optimizing resource allocation.

Types of Persistent Storage in Kubernetes

Kubernetes enables a wide variety of application deployments. Therefore, it also offers many storage options. While there are many more, we want to focus on the two specific ones that enable Kubernetes persistent storage, speed, and high availability (at least to some extent).

Kubernetes persistent volumes via storage plugins (CSI drivers) are your best bet for persistent storage and offer the widest variety of backing storage. Implementations can either offer access to an independently running storage cluster or appliance (disaggregated) or use the local storage of the Kubernetes worker nodes and offer it as a shared, clustered resource or just as an enhanced version of local mounts (hyperconverged). This type of storage is specifically interesting to persistent volumes since many companies provide enhanced features such as immediate snapshots, clones, thin provisioning, and more.

Editorial: Simplyblock provides the industry-leading cloud-native Kubernetes Enterprise storage to enable IO-intensive and latency-sensitive stateful workloads (like databases) that need increased reliability, speed, and cost-effectiveness. Additionally, simplyblock offers advanced deployment options, which include hyperconverged, disaggregated, and a combination of the two.

HostPath volumes are backed by a directory on the host machine. They stay intact when the pod or container is terminated or even deleted and can be reattached to a new pod or container as long as the new one is scheduled and created on the same Kubernetes worker node. This offers some type of durability but comes with the additional complexity of ensuring containers live on specific workers. While tainting nodes may work, a globally available (in the sense of across the Kubernetes cluster) backing storage will be easier and enable better resource utilization. This type is often used for speed requirements, taking a hit on high availability and fault tolerance.

Editorial: Simplyblock can provide high IOPS and predictable low latency without sacrificing high availability and fault tolerance.

How do Persistent Volumes Work?

Persistent Volumes are implemented using a combination of Kubernetes components and container storage interface (CSI)- backed storage plugins or drivers.

Internally, persistent storage is represented as a combination of persistent volumes (the actual logical storage entity) and persistent volume claims (the “assignment” of a volume to a container request for storage). Both types are Kubernetes resources and can be created, updated, or deleted using API calls or CRDs (custom resource definition).

Using a StorageClass, Kubernetes’ persistent volume claim (PVC) requests a specific backing implementation to provide a persistent volume. The storage class always defines which kind of storage implementation is used. However, a storage plugin may provide multiple storage classes and encode specific performance or other characteristics, such as high availability or levels of fault tolerance. The specific details depend on the storage plugin.

When the persistent volume claim is provided with a matching persistent volume, Kubernetes will mount the persistent volume into the pod, enabling access to the PV from inside the container. Additionally, the PVC may restrict or permit reading or writing data into the storage. These permissions can also enable features like simultaneously attaching the same persistent volume to multiple containers, provided that the backing implementation offers such functionality.

Last but not least, when the PV’s lifecycle is bound to the PVC, automatic resource management, like dynamic allocation and deallocation, happens when the PVC is created or deleted. Depending on the type of deployment, this can be a real benefit or completely useless. It’s up to you to decide when you want automatic resource management and when not—that’s the beauty of declarative configuration.

Your Stateful Workload

Persistent volumes (PVs) are critical in deploying stateful workloads into Kubernetes environments. By abstracting storage provisioning and management, PVs enable seamless integration of many storage resources, enabling the “use the best tool for the job” rule. That said, not all applications may have the same storage requirements, hence providing multiple storage classes can be required. Kubernetes makes this specifically easy with its storage plugin design and the definition of storage classes. Understanding persistent volumes is essential for Kubernetes administrators and developers looking to optimize storage management within their containerized environments.

Simplyblock offers a flexible, enterprise-ready Kubernetes storage solution that combines high performance, predictable low latency, and high availability, as well as fault tolerance. In addition, simplyblock provides advanced features such as immediate snapshots (copy-on-write), local and remote clones, cluster replication, thin provisioning, storage overcommitment, and zero downtime scalability. Do you want to learn more about simplyblock, or are you ready to use it ?

The post What is a Kubernetes Persistent Volume? appeared first on simplyblock.

Editorial: This blog post is written by a guest author, Steven Sklar from QuestDB. It appeared first on his private blog at sklar.rocks. We appreciate his contributions to the Kubernetes ecosystem and wanted to thank him for letting us repost his article. Steven, you rock! 🔥

The Container Storage Interface is an API specification that enables developers to build custom drivers which handle the provisioning, attaching, and mounting of volumes in containerized workloads. As long as a driver correctly implements the CSI API spec, it can be used in any supported Container Orchestration system, like Kubernetes. This decouples persistent storage development efforts from core cluster management tooling, allowing for the rapid development and iteration of storage drivers across the cloud native ecosystem.

In Kubernetes, the CSI has replaced legacy in-tree volumes with a more flexible means of managing storage mediums. Previously, in order to take advantage of new storage types, one would have had to upgrade an entire cluster’s Kubernetes version to access new PersistentVolume API fields for a new storage type. But now, with the plethora of independent CSI drivers available, you can add any type of underlying storage to your cluster instantly, as long as there’s a driver for it.

But what if existing drivers don’t provide the features that you require and you want to build a new custom driver? Maybe you’re concerned about the ramifications of migrating from in-tree to CSI volumes? Or, you simply want to learn more about how persistent storage works in Kubernetes? Well, you’re in the right place! This article will describe what the CSI is and detail how it’s implemented in Kubernetes.

It’s APIs all the way down

Like many things in the Kubernetes ecosystem, the Container Storage Interface is actually just an API specification. In the container-storage-interface/spec GitHub repo, you can find this spec in 2 different versions:

1. A protobuf file that defines the API schema in gRPC terms
2. A markdown file that describes the overall system architecture and goes into detail about each API call

What I’m going to discuss in this section is an abridged version of that markdown file, while borrowing some nice ASCII diagrams from the repo itself!

Architecture

A CSI Driver has 2 components, a Node Plugin and a Controller Plugin. The Controller Plugin is responsible for high-level volume management; creating, deleting, attaching, detatching, snapshotting, and restoring physical (or virtualized) volumes. If you’re using a driver built for a cloud provider, like EBS on AWS, the driver’s Controller Plugin communicates with AWS HTTPS APIs to perform these operations. For other storage types like NFS, EXSI, ZFS, and more, the driver sends these requests to the underlying storage’s API endpoint, in whatever format that API accepts.

Editorial: The same is true for simplyblock. Simplyblock’s CSI driver implements all necessary, and following described calls, making it a perfect drop-in replacement for Amazon EBS. If you want to learn more read: Why simplyblock.

On the other hand, the Node Plugin is responsible for mounting and provisioning a volume once it’s been attached to a node. These low-level operations usually require privileged access, so the Node Plugin is installed on every node in your cluster’s data plane, wherever a volume could be mounted.

The Node Plugin is also responsible for reporting metrics like disk usage back to the Container Orchestration system (referred to as the “CO” in the spec). As you might have guessed already, I’ll be using Kubernetes as the CO in this post! But what makes the spec so powerful is that it can be used by any container orchestration system, like Nomad for example, as long as it abides by the contract set by the API guidelines.

The specification doc provides a few possible deployment patterns, so let’s start with the most common one.

CO "Master" Host
+-------------------------------------------+
|                                           |
|  +------------+           +------------+  |
|  |     CO     |   gRPC    | Controller |  |
|  |            +----------->   Plugin   |  |
|  +------------+           +------------+  |
|                                           |
+-------------------------------------------+

CO "Node" Host(s)
+-------------------------------------------+
|                                           |
|  +------------+           +------------+  |
|  |     CO     |   gRPC    |    Node    |  |
|  |            +----------->   Plugin   |  |
|  +------------+           +------------+  |
|                                           |
+-------------------------------------------+

Since the Controller Plugin is concerned with higher-level volume operations, it does not need to run on a host in your cluster’s data plane. For example, in AWS, the Controller makes AWS API calls like ec2:CreateVolume, ec2:AttachVolume, or ec2:CreateSnapshot to manage EBS volumes. These functions can be run anywhere, as long as the caller is authenticated with AWS. All the CO needs is to be able to send messages to the plugin over gRPC. So in this architecture, the Controller Plugin is running on a “master” host in the cluster’s control plane.

Volume Lifecycle

The spec provides a flowchart of basic volume operations, also in the form of a cool ASCII diagram:

   CreateVolume +------------+ DeleteVolume
 +------------->|  CREATED   +--------------+
 |              +---+----^---+              |
 |       Controller |    | Controller       v
+++         Publish |    | Unpublish       +++
|X|          Volume |    | Volume          | |
+-+             +---v----+---+             +-+
                | NODE_READY |
                +---+----^---+
               Node |    | Node
            Publish |    | Unpublish
             Volume |    | Volume
                +---v----+---+
                | PUBLISHED  |
                +------------+

Mounting a volume is a synchronous process: each step requires the previous one to have run successfully. For example, if a volume does not exist, how could we possibly attach it to a node?

When publishing (mounting) a volume for use by a workload, the Node Plugin first requires that the Controller Plugin has successfully published a volume at a directory that it can access. In practice, this usually means that the Controller Plugin has created the volume and attached it to a node. Now that the volume is attached, it’s time for the Node Plugin to do its job. At this point, the Node Plugin can access the volume at its device path to create a filesystem and mount it to a directory. Once it’s mounted, the volume is considered to be published and it is ready for a containerized process to use. This ends the CSI mounting workflow.

Continuing the AWS example, when the Controller Plugin publishes a volume, it calls ec2:CreateVolume followed by ec2:AttachVolume. These two API calls allocate the underlying storage by creating an EBS volume and attaching it to a particular instance. Once the volume is attached to the EC2 instance, the Node Plugin is free to format it and create a mount point on its host’s filesystem.

Here is an annotated version of the above volume lifecycle diagram, this time with the AWS calls included in the flow chart.

   CreateVolume +------------+ DeleteVolume
 +------------->|  CREATED   +--------------+
 |              +---+----^---+              |
 |       Controller |    | Controller       v
+++         Publish |    | Unpublish       +++
|X|          Volume |    | Volume          | |
+-+                 |    |                 +-+
                    |    |
  |    |
                    |    |
  |    |
                    |    |
                +---v----+---+
                | NODE_READY |
                +---+----^---+
               Node |    | Node
            Publish |    | Unpublish
             Volume |    | Volume
                +---v----+---+
                | PUBLISHED  |
                +------------+

If a Controller wants to delete a volume, it must first wait for the Node Plugin to safely unmount the volume to preserve data and system integrity. Otherwise, if a volume is forcibly detached from a node before unmounting it, we could experience bad things like data corruption. Once the volume is safely unpublished (unmounted) by the Node Plugin, the Controller Plugin would then call ec2:DetachVolume to detach it from the node and finally ec2:DeleteVolume to delete it, assuming that the you don’t want to reuse the volume elsewhere.

What makes the CSI so powerful is that it does not prescribe how to publish a volume. As long as your driver correctly implements the required API methods defined in the CSI spec, it will be compatible with the CSI and by extension, be usable in COs like Kubernetes and Nomad.

Running CSI Drivers in Kubernetes

What I haven’t entirely make clear yet is why the Controller and Node Plugins are plugins themselves! How does the Container Orchestrator call them, and where do they plug into?

Well, the answer depends on which Container Orchestrator you are using. Since I’m most familiar with Kubernetes, I’ll be using it to demonstrate how a CSI driver interacts with a CO.

Deployment Model

Since the Node Plugin, responsible for low-level volume operations, must be running on every node in your data plane, it is typically installed using a DaemonSet. If you have heterogeneous nodes and only want to deploy the plugin to a subset of them, you can use node selectors, affinities, or anti-affinities to control which nodes receive a Node Plugin Pod. Since the Node Plugin requires root access to modify host volumes and mounts, these Pods will be running in privileged mode. In this mode, the Node Plugin can escape its container’s security context to access the underlying node’s filesystem when performing mounting and provisioning operations. Without these elevated permissions, the Node Plugin could only operate inside of its own containerized namespace without the system-level access that it requires to provision volumes on the node.

The Controller Plugin is usually run in a Deployment because it deals with higher-level primitives like volumes and snapshots, which don’t require filesystem access to every single node in the cluster. Again, lets think about the AWS example I used earlier. If the Controller Plugin is just making AWS API calls to manage volumes and snapshots, why would it need access to a node’s root filesystem? Most Controller Plugins are stateless and highly-available, both of which lend themselves to the Deployment model. The Controller also does not need to be run in a privileged context.

Event-Driven Sidecar Pattern

Now that we know how CSI plugins are deployed in a typical cluster, it’s time to focus on how Kubernetes calls each plugin to perform CSI-related operations. A series of sidecar containers, that are registered with the Kubernetes API server to react to different events across the cluster, are deployed alongside each Controller and Node Plugin. In a way, this is similar to the typical Kubernetes controller pattern, where controllers react to changes in cluster state and attempt to reconcile the current cluster state with the desired one.

There are currently 6 different sidecars that work alongside each CSI driver to perform specific volume-related operations. Each sidecar registers itself with the Kubernetes API server and watches for changes in a specific resource type. Once the sidecar has detected a change that it must act upon, it calls the relevant plugin with one or more API calls from the CSI specification to perform the desired operations.

Controller Plugin Sidecars

Here is a table of the sidecars that run alongside a Controller Plugin:

How do these sidecars work together? Let’s use an example of a StatefulSet to demonstrate. In this example, we’re dynamically provisioning our PersistentVolumes (PVs) instead of mapping PersistentVolumeClaims (PVCs) to existing PVs. We start at the creation of a new StatefulSet with a VolumeClaimTemplate.

---
apiVersion: apps/v1
kind: StatefulSet
spec:
  volumeClaimTemplates:
  - metadata:
      name: www
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "my-storage-class"
      resources:
        requests:
         storage: 1Gi

Creating this StatefulSet will trigger the creation of a new PVC based on the above template. Once the PVC has been created, the Kubernetes API will notify the external-provisioner sidecar that this new resource was created. The external-provisioner will then send a CreateVolume message to its neighbor Controller Plugin over gRPC. From here, the CSI driver’s Controller Plugin takes over by processing the incoming gRPC message and will create a new volume based on its custom logic. In the AWS EBS driver, this would be an ec2:CreateVolume call.

At this point, the control flow moves to the built-in PersistentVolume controller, which will create a matching PV and bind it to the PVC. This allows the StatefulSet’s underlying Pod to be scheduled and assigned to a Node.

Here, the external-attacher sidecar takes over. It will be notified of the new PV and call the Controller Plugin’s ControllerPublishVolume endpoint, mounting the volume to the StatefulSet’s assigned node. This would be the equivalent to ec2:AttachVolume in AWS.

At this point, we have an EBS volume that is mounted to an EC2 instance, all based on the creation of a StatefulSet, PersistentVolumeClaim, and the work of the AWS EBS CSI Controller Plugin.

Node Plugin Sidecars

There is only one unique sidecar that is deployed alongside the Node Plugin; the node-driver-registrar. This sidecar, running as part of a DaemonSet, registers the Node Plugin with a Node’s kubelet. During the registration process, the Node Plugin will inform the kubelet that it is able to mount volumes using the CSI driver that it is part of. The kubelet itself will then wait until a Pod is scheduled to its corresponding Node, at which point it is then responsible for making the relevant CSI calls ( PublishVolume ) to the Node Plugin over gRPC.

Common Sidecars

There is also a livenessprobe sidecar that runs in both the Container and Node Plugin Pods that monitors the health of the CSI driver and reports back to the Kubernetes Liveness Probe mechanism.

Communication over Sockets

How do these sidecars communicate with the Controller and Node Plugins? Over gRPC through a shared socket! So each sidecar and plugin contains a volume mount pointing to a single unix socket.

This diagram highlights the pluggable nature of CSI Drivers. To replace one driver with another, all you have to do is simply swap the CSI Driver container with another and ensure that it’s listening to the unix socket that the sidecars are sending gRPC messages to. Becase all drivers advertise their own different capabilities and communicate over the shared CSI API contract, it’s literally a plug-and-play solution.

Conclusion

In this article, I only covered the high-level concepts of the Container Storage Interface spec and implementation in Kubernetes. While hopefully it has provided a clearer understanding of what happens once you install a CSI driver, writing one requires significant low-level knowledge of both your nodes’ operating system(s) and the underlying storage mechanism that your driver is implementing. Luckily, CSI drivers exist for a variety of cloud providers and distributed storage solutions, so it’s likely that you can find a CSI driver that already fulfills your requirements. But it always helps to know what’s happening under the hood in case your particular driver is misbehaving.

If this article interests you and you want to learn more about the topic, please let me know! I’m always happy to answer questions about CSI Drivers, Kubernetes Operators, and a myriad of other DevOps-related topics.

The post How the CSI (Container Storage Interface) Works appeared first on simplyblock.

Docker, initially released in 2013, brought containerized applications to the vast majority of users (outside of the Solaris and BSD world), making them a commodity to the masses. Kubernetes, however, eased the process of orchestrating complex container-based systems. Both systems enable data storage options, ephemeral (temporary) or persistent. Let’s dive into concepts of container-attached storage and Kubernetes CSI.

What is Container Attached Storage (CAS)?

When containerized services need disk storage, whether ephemeral or persistent, container-attached storage (or CAS) provides the requested “virtual disk” to the container.

The CAS resources are managed alongside other container resources and are directly attached to the container’s own lifecycle. That means that storage resources are automatically provisioned and potentially de-provisioned. To achieve this functionality, the management of container-attached storage resources isn’t provided by the host operating system but directly integrated into the container runtime environment, hence systems such as Kubernetes, Docker, and others.

Since the storage resource is attached to the container, it isn’t used by the host operating system or other containers. Detaching storage and compute resources provides one of the building blocks of loosely coupled services, which small and independent development teams can easily manage.

From my perspective, five main principles are important to CAS:

1. Native: Storage resources are a first-class citizen of containerized environments. Therefore, the overall container runtime environment seamlessly integrates with and fully manages it.
2. Dynamic: Storage resources are (normally) coupled to their container’s lifecycle. This allows for on-demand provisioning of storage volumes whose size and performance profile are tailored to the applications’ needs. The dynamic nature and automatic resource management prevent manual intervention of volumes and devices.
3. Decoupled: Storage resources are decoupled from the underlying infrastructure, meaning the container doesn’t know (and care) where the provided storage comes from. That makes it easy to provide different storage options, like high performance or highly resilient storage, to different containers. For super-high performance but ephemeral storage, even RAM disks would be an option.
4. Efficient: By eliminating the need for traditional storage, e.g., local storage, it is easy to optimize resource utilization using special storage clusters, thin provisioning, and over-commitment. It also makes it easy to provide multi-regional backups and enables immediate re-attachment in case the container needs to be rescheduled on another cluster node.
5. Agnostic: The storage provider can be easily exchanged due to the decoupling of storage resources and container runtime. This prevents vendor lock-in or provides the option to utilize multiple different storage options, depending on the needs of specific applications. A database running in a container will have very different storage requirements from a normal REST API service.

Given the five features above, we have the chance to provide each and every container with the exact storage option necessary. Some may need only ephemeral storage. Hence, temporary storage can be discarded when the container itself stops, while others need persistent storage, which either lives until the container is deleted or, in specific cases, will even survive this to be reattached to a new container (for example, in the case of container migration).

What is a Container Storage Interface (Kubernetes CSI)?

Like everything in Kubernetes, the container-attached storage functionality is provided by a set of microservices orchestrated by Kubernetes itself, making it modular by design. That said, services internally provided and extended by vendors make up the container storage interface (or Kubernetes CSI). Together, they create a well-defined interface for any type of storage option to be plugged into Kubernetes.

The container storage interface defines a standard set of functionalities, some mandatory and some optional, to be implemented by the Kubernetes CSI drivers. Those drivers are commonly provided by the different vendors of storage systems.

Hence, the CSI drivers build bridges between Kubernetes and the actual storage implementation, which can be physical, software-defined, or fully virtual (like an implementation sending all data “stored” to /dev/null). On the other hand, it allows vendors to implement their storage solution as efficiently as possible, providing a minimal set of operations towards provisioning and general management. That way, vendors can choose how to implement storage, with the two main categories being hyperconverged (compute and storage sharing the same cluster nodes), disaggregated, meaning that the actual storage environment is fully separated from the Kubernetes workloads using them, bringing a clear separation of storage and compute resources.

Just like Kubernetes, the container storage interface is developed as a collaborative effort inside the Cloud Native Computing Foundation (better known as CNCF) by members from all sides of the industry, vendors, and users.

The main goal of Kubernetes CSI is to deliver on the premise of being fully vendor-neutral. In addition, it enables parallel deployment of multiple different drivers, offering storage classes for each of them. This provides us, as users, with the ability to choose the best storage technology for each container, even in the same Kubernetes cluster.

As mentioned, the Kubernetes CSI driver interface provides a standard storage (or volume) operation set. These include creation or provisioning, resizing, snapshotting, cloning, and volume deletion. The operations can either be performed directly or through Kubernetes’ container resource descriptors (CRD), integrating into the consistent approach to managing container resources.

Editor’s note: We also have a deep dive into how the Kubernetes Container Storage Interface works.

Kubernetes and Stateful Workloads

For many people, containerized workloads should be fully stateless; in the past, it was the most commonly used mantra. With the rise of orchestration platforms, such as Kubernetes, it also became more typical to deploy more stateful workloads, often due to the simplified deployment. Orchestrators offer features like automatic elasticity, restarting containers after crashes, automatic migration of containers for rolling upgrades, as well as many more typical operational procedures. Having them built-in into an orchestration platform takes a lot of the burden, hence people started to deploy more and more databases.

Databases aren’t the only stateful workloads, though. Other applications and services may also require storage of some kind of state, sometimes as a local cache, using ephemeral storage, and sometimes in a more persistent fashion, as databases.

Benjamin Wootton (then working for Contino, now at Ensemble) wrote a great blog post about the difference between stateless and stateful containers and why the latter is needed. You should read it, but only after this one.

Your Kubernetes Storage with Simplyblock

The container storage interface in Kubernetes serves as the bridge between Kubernetes and external storage systems. It provides a standardized and modular approach to provisioning and managing container-attached storage resources.

By decoupling storage functionality from the Kubernetes core, Kubernetes CSI promotes interoperability, flexibility, and extensibility. This enables organizations to seamlessly leverage a wide range of storage solutions in their Kubernetes environments, tailoring the storage to the needs of each container individually.

With the evolving ecosystem and changing Kubernetes workloads towards databases and other IO-intensive or low-latency applications, storage becomes increasingly important. Simplyblock is your distributed, disaggregated, high-performance, predictable, low-latency, and resilient storage solution. Simplyblock is tightly integrated with Kubernetes through the CSI driver and available as a StorageClass. It enables storage virtualization with overcommitment, thin provisioning, NVMe over TCP access, copy-on-write snapshots, and many more features.

If you want to learn more about simplyblock, read “Why simplyblock?” If you want to get started, we believe in simple pricing.

The post Kubernetes CSI: Container Attached Storage appeared first on simplyblock.

As businesses increasingly migrate to the cloud, or build newer applications as cloud-native services, understanding the cloud cost becomes essential for cost-effective operations. With Amazon EBS often making up 50% or more of the cloud cost, it is important to grasp the intricacies of Amazon EBS pricing, explore the key concepts, and find the main factors that influence cost, as well as strategies to optimize expenses.

Understanding Amazon EBS

Amazon EBS provides scalable block-level storage volumes for use with Amazon EKS Persistent Volumes, EC2 instances, and other Amazon services. It offers various volume types, each designed for specific use cases, such as General Purpose (SSD), Provisioned IOPS (SSD), and HDD based. The choice of volume type significantly impacts performance and cost, making it vital to align storage configurations with application requirements.

Amazon EBS Pricing Breakdown

AWS pricing is complicated and requires a lot of studying the different regions, available options, as well as some good estimations of a service’s own behavior in terms of speed and capacity requirements.

Amazon EBS provides a set of different factors that influence availability, performance, capacity, and most prominently the cost.

Volume Type and Performance

Different workloads demand different levels of performance. Understanding the nature of your applications and selecting the appropriate volume type is crucial to balance cost and performance. The available volume types will be discussed further down in the blog post.

Volume Size

Amazon EBS volumes come in various sizes, and costs scale with the amount of provisioned storage per volume. Assessing the storage storage requirements and adjusting volume sizes accordingly to avoid over-provisioning can influence quite significantly.

Snapshot Costs

Creating snapshots for backup and disaster recovery is a common practice. However, snapshot costs can accumulate, especially as the frequency and volume of snapshots increase, the cost scales with the number and types of snapshots created. Additionally, there are two types of snapshots, standard, which is the default, and archive, which is cheaper on the storage side, but incurs cost when being restored. Implementing a snapshot management strategy to control expenses is crucial.

Throughput and I/O Operations

Throughput and I/O operations may or may not incur additional costs, depending on the selected volume type.

While data transfer is often easy to estimate, the necessary values for throughput and I/O operations per second (also known as IOPS ) are much harder. Especially IOPS can be a fair amount of the spending when running io-intensive workloads, such as databases, data warehouses, high-load webservers, or similar.

Be mindful of the amount of data transferred in and out of your EBS volumes, as well as the number of I/O operations performed.

Amazon EBS Volume Types

As mentioned above, Amazon EBS has quite the set of different volume types. Some are designed for specific use cases or to provide a cost-effective alternative, while others are older or newer generations for the same usage scenario.

An in-depth technical description of the different volume types can be found on AWS’ documentation .

Cheap Storage Volumes (st1 / Sc1)

The first category is designed for storage volumes that require large amounts of data storage which, at the same time, doesn’t need to provide the highest performance characteristics.

Being based upon HDD disks, the access latency is high and transfer speed is fairly low. The volume can be scaled up to 16TiB each though, reaching a high capacity at a cheap price.

Durability is typically given as 99.8% – 99.9%, meaning that the volume can be offline for roughly 9h per year. Warm ( throughput optimized) and cold volumes are available, relating to the types st1 and sc1 respectively.

General Purpose Volumes (gp2 / Gp3)

The second category is, what AWS calls, general purpose. It has the widest applicability and is the default option when looking for an Amazon EBS volume.

When creating volumes, gp2 should be avoided, being the old generation at the same price but with less features. That said, gp3 provides higher throughput and IOPS over st1 and sc1 volumes due to being SSD-based storage. Like the HDD-based services, durability is in the same range of 99.8% – 99.9%, leading to up to 9h per year unavailability. Likewise with capacity. Volumes can be scaled up to 16TiB each and therefore are perfect for a variety of use cases, such as boot volumes, simple transactional workloads, smaller databases, and similar.

Provisioned IOPS Volumes (io1 / Io2)

The third option are high-performance SSD (and NVMe) based volumes.

Amazon EBS Pricing

Prices for Amazon EBS volumes and additional upgrades depend on the region they are created in. For that reason, it is not possible to give an exact explanation of the pricing. There is, however, the chance to give an overview of what features have separate prices, and an example for one specific region.

The base Amazon EBS volume types normal price from cheapest to most expensive (GB-month):

1. HDD-based sc1 2. HDD-based st1 3. SSD-based gp2 4. SSD-based gp3 5. SSD-based io1 and io2

In addition to the base pricing, there are certain capabilities or aspects which can be increased for an additional cost, such as I/O Operations per Second (IOPS) Throughput

Amazon EBS Pricing example

And this is where it gets a bit more complicated. Every type of volume has its own set of base, and maximum available capabilities. Not all capabilities are available on all volume types though.

In our example, we want to create an Amazon EBS volume of type io2 in the US-EAST with 10 TB storage capacity. In addition we want to increase the available IOPS to 80,000 – just to make it complicated. For newer io2 volumes, the throughput scales proportionally with provisioned IOPS up to 4,000 MiB/s, meaning we don’t have to pay extra.

Base price for the io2 volume: The volume’s base cost is 0.125 USD/GB-month. That said, our 10 TB volume comes up to 1,250 USD per month.

Throughput capability pricing: The throughput of up to 4,000 MiB/s is automatically scaled proportionally to the provisioned IOPS, so all is good here. For other volume types, additional throughput (over the base amount) can be bought.

IOPS capability pricing: The pricing for IOPS can be as complicated as with io2 volumes. These have multiple “discount stages”. The prices are split at 32,000 and 64,000 IOPS.

With that in mind, the IOPS pricing can be broken down into: 0-32,000 IOPS * 0.065 USD/IOPS-month = 2,080 USD/month 32,001 – 64,000 IOPS * 0.046 USD/IOPS-month = 1,417.95 USD/month 64,001 – 80,000 IOPS * 0.032 USD/IOPS-month = 511.97 USD/month

Cost of the io2 volume: That means, including all cost factors (USD 1,250.00 + USD 2,080.00, USD 1,417.95, USD 511.97), the cost builds up to a monthly fee of USD 5,259.92 – for a single volume.

Strategies to Optimize Amazon EBS Spending

Amazon EBS volumes can be expensive as just shown. Therefore, it is important to keep the following strategies for cost reduction and optimization in mind.

Rightsize your Volumes

Regularly assess your storage requirements and resize volumes accordingly. Downsizing or upsizing volumes based on actual needs can result in significant cost savings. If auto-growing of volumes is enabled, keep the disk growth in check. Log files, or similar, running amok can blow your spend limit in hours.

Utilize Provisioned IOPS Wisely

Provisioned IOPS volumes offer high-performance storage but come at a high cost. Use them judiciously (and not ludicrously) for applications that require consistent and low-latency performance, and consider alternatives for less demanding workloads.

Implement Snapshot Lifecycle Policies

Set up lifecycle policies for snapshots to manage retention periods and reduce unnecessary storage costs. Periodically review and clean up outdated snapshots to optimize storage usage.

Leverage EBS-Optimized Instances

Use EC2 instances that are EBS-optimized for better performance. This ensures that the network traffic between EC2 instances and EBS volumes does not negatively impact overall system performance.

Conclusive Thoughts

As businesses continue to leverage AWS services, understanding and optimizing Amazon EBS spending is a key aspect of efficient cloud management. By carefully selecting the right volume types, managing sizes, and implementing cost-saving strategies, organizations can strike a balance between performance and cost-effectiveness in their cloud storage infrastructure. Regular monitoring and adjustment of storage configurations will contribute to a well-optimized and cost-efficient AWS environment.

If this feels too complicated or the requirements are hard to predict, simplyblock offers an easier, more scalable, and future-proof solution. Running right in your AWS account, providing you with the fastest and easiest way to build your own Amazon EBS alternative for Kubernetes, and save 60% and more on storage cost at the same time. Learn here how simplyblock works.

The post AWS EBS Pricing: A Comprehensive Guide appeared first on simplyblock.

The core architecture of simplyblock revolves around cluster-based infrastructure, ensuring remarkable reliability, durability, and availability. With automated health-checking mechanisms and seamless scalability, simplyblock enables smooth operations without compromising performance or data integrity. This unique approach empowers users to optimize resource utilization and achieve significant cost savings, making it an ideal choice for organizations with demanding workloads and stringent performance requirements.

By leveraging simplyblock’s solution, businesses can break free from the limitations of AWS EBS and experience unparalleled performance and efficiency. The flexible deployment options, including virtualized or bare-metal EC2 instances, coupled with seamless integration with AWS infrastructure, provide a hassle-free experience for administrators and developers. With simplyblock’s innovative approach to high-performance block storage, organizations can unlock new possibilities and overcome the limitations of traditional cloud storage services.

Feature & Price Comparison: Simplyblock vs EBS

Get the “Simplyblock for AWS” White Paper Now:

Simplyblock for AWS

Read more on our website: https://www.Simplyblock.io/aws-storage

The post Simplyblock for AWS – Whitepaper appeared first on simplyblock.
